Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | NanJiang Machinery |
| Certification: | ISO9001:2015&CE |
| Model Number: | KD-430 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Steel Frames |
| Delivery Time: | 90 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 Sets/Month |
|
Detail Information |
|||
| Brand Name: | NanJiang Machinery | Bottom Type: | Square Bottom Or Cross Bottom |
|---|---|---|---|
| Packaging: | Steel Frames | Warranty: | 2 Years |
| Computerized: | Yes | Inline Printing: | Available |
| Certification: | CE,ISO | ||
| High Light: | 70pcs/min Paper Courier Bag Making Machine,250mm mailing bag making machine,80mm mailing bag making machine |
||
Product Description

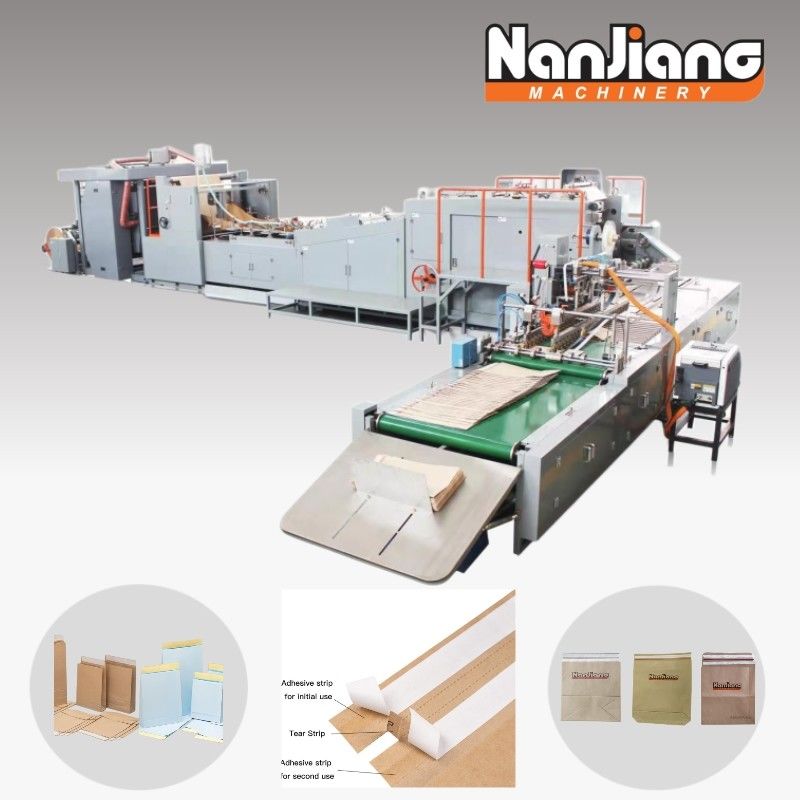

KD-430 Roll Feding E-Commerce/Mailing Paper Bag Machine
Properties and uses:
It is the machine which applicable for Eco-friendly Paper mailing bags, E-commerce paper bags, Self-Seal Adhesive courier bags, mailer bags, documents delivery bags, etc.
The raw material from paper rollers or printed -paper rolls into square bottom/block bottom bags. It is equipped with HMI for easy operation; with photocell sensor for pre-printed bags or optional of inline printing. The bags can be many different dimensions with Peel & Seal Flat for easy opening.
Kindly noted: The parameters above are not absolute due to customization; operator's skills, temperature, moisture, material and size of paper, categories and quality of glue can affect production speed, rejection rate, and applicable range of machine.
Technical parameter:
| Machine Model | KD-430 | |
| Paper Roll Width | 510-1250mm | |
| Paper thickness | 100-150 gsm | |
|
Paper Bag Width |
Square bottom | 200-550 mm |
| Cross bottom | 200-550 mm | |
| Fold Flap Size | 70mm ( Can be Customized/fixed size) | |
| Paper Tube Length/ Cutting Length | 350-800 mm | |
| Bag Bottom Width | Square bottom | 80-250 mm |
| Cross bottom | 80-150 mm | |
| Max. Speed | 70Bags/min. | |
| Max. Roll material diameter | ￠1200 mm | |
| Material Core Diameter | ￠76mm(3″) | |
| Total Power | 25 KW | |
| Machine Weight | 11000KG | |
| Machine Dimension (L*W*H) | Bag Making | 13000x2000x2500mm |
| Adhesive-tape Application | 7000x1600x1500mm | |
