China Flat Handle Paper Bag Machine manufacturer

40-70pcs/Min Paper Carry Bag Making Machine Sheet Feed 20kw With Auto Top Folding System

Product Details:
Place of Origin: China
Brand Name: NanJiang Machinery
Model Number: HD-430A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Steel Frames
Delivery Time: 60 Days
Payment Terms: T/T, L/C
Supply Ability: 20 Sets/Month

Detail Information

Certification: CE,ISO Condition: New
Bag Type: Square Bottom Paper Bag Production Speed: 40-70 Bags/min
Total Power: 20KW Min. Sheet Paper Size: 545x 350mm
Max. Sheet Paper Size: 1225 X 600mm
High Light:

40pcs/min paper carry bag making machine


70pcs/min paper carry bag making machine


20kw sheet feed paper bag machine

Product Description

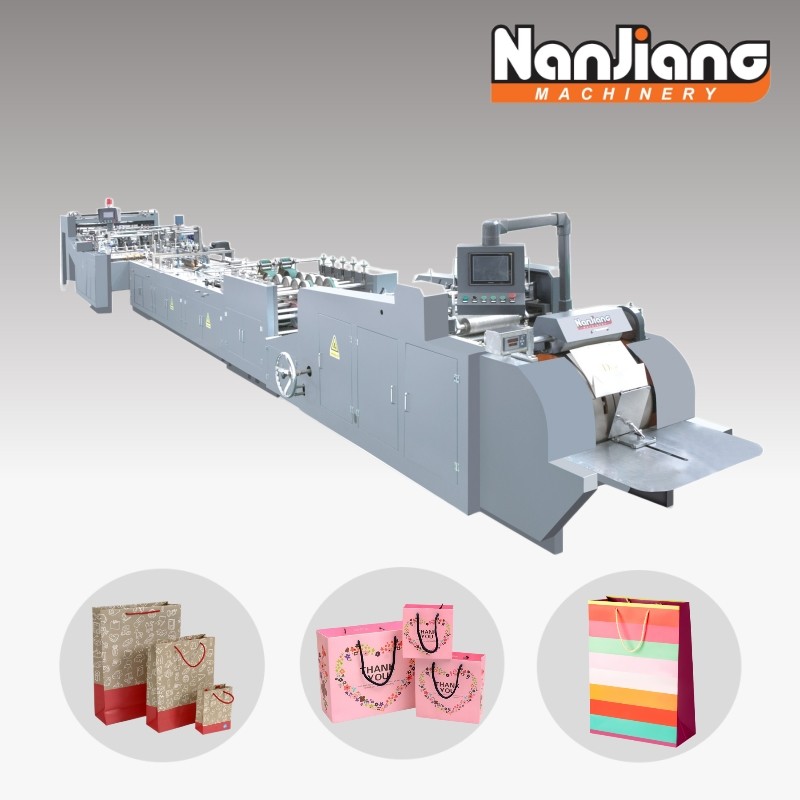

HD-430A Sheet Feeding Paper Carry Bag Machine With Auto Top-Folding System


Properties and uses:


It is a fully automatic machine for the production of square bottom paper bags with folded top & cardboard. The material could be Sheet paper or printed sheet paper/ Laminated Sheets only. It can produce variable sizes paper bags. The machine automatic paper fed from sheets, Automatic Die-cutting(creasing lines for folding), Bag tube forming, Bag bottom forming , bottom cardboard insertion & gluing, Bag bottom folding & gluing, Bag forming and final bag output, All steps are completed in-line.


Technical parameter:
Machine Model HD-430A
Min. Sheet Paper size 545x 350mm
Max. Sheet Paper size 1225 x 600mm
Paper Thickness

1. Kraft Paper 120-200g/㎡

2. Coated Paper + PP film 157-250g/㎡

3. Ivory Board Paper PP film 180-250g/㎡

4. Cardboard Paper PP film 150-300g/㎡

Paper Bag Width 180-430 mm
Paper Tube Length 350-600 mm
Bag Bottom Width 80-170mm
Bag Top fold Depth 30-60 mm
Speed 40-70 Bags/min.
Total Power 20KW
Machine Weight
(L x W x H)
14500 x 2000 x 2100mm
Type of glue Cold & Hot melt Glue
