Home ProductsSquare Bottom Paper Bag MachineHD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding
HD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding
HD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding
HD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding HD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding

HD-330 60-150mm Square Bottom Paper Bag Machine 70-150pcs/Min Roll Feding

Product Details:
Place of Origin: China
Brand Name: NanJiang Machinery
Certification: ISO9001:2015; CE
Model Number: HD-330
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Steel Frames
Delivery Time: 60 Days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets/Month
Contact Now

Detail Information
Model Number: HD-330 Bag Width: 100-330
Bottom Wifth: 60-150 Paper Tube Length: 270-600
Condition: New Computerized: Yes
Payment: 30% Deposit By T/T ,70% By T/T Or Irrevocable L/C At Sight Before Shipment Double Layers: Available
High Light:

60mm Square Bottom Paper Bag Machine

,

150mm Square Bottom Paper Bag Machine

,

square bottom paper bag making machine 150pcs/min

Product Description

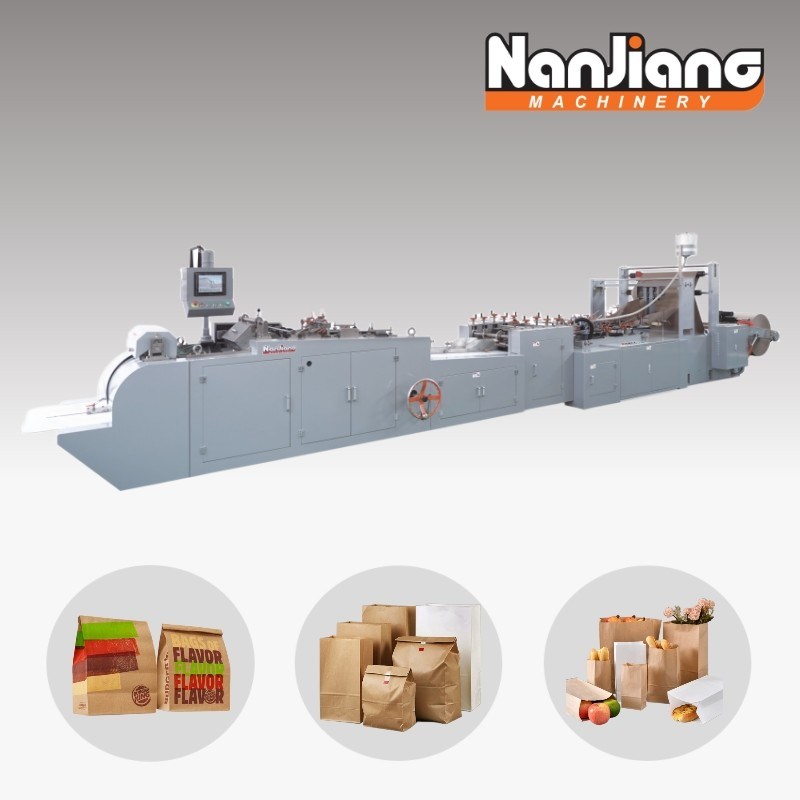

HD-330 Roll Fed Square Bottom Paper Bag Machine

Properties and uses:

This machine is built to make shopping bags or food bags with paper rolls, paper can be pre-printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.

Paper Bags to be used for packing items / Paper shopping bags used for carrying the goods after paste handles.
​
Technical parameter:

Machine Model HD-330
Paper Roll Width 350-970mm
Paper thickness 60-150 gsm
Paper Bag Width 100-330 mm
Paper Tube Length 270-600 mm
Bag Bottom Width 60-150 mm
Speed 70-150Bags/min.
Max. Roll material diameter ￠1200 mm
Material Core Diameter ￠76mm(3″)
Total Power 16KW
Machine Weight 9000KG
Machine Dimension (L*W*H) 12500x2100x2000mm





Tag:

60mm Square Bottom Paper Bag Machine

150mm Square Bottom Paper Bag Machine

square bottom paper bag making machine 150pcs/min
