50-60pcs/Min Sheet Fed Paper Bag With Handle Machine 80-170mm High Speed

50-60pcs/Min Sheet Fed Paper Bag With Handle Machine 80-170mm High Speed

Product Details:
Place of Origin:	China
Brand Name:	NanJiang Machinery
Certification:	ISO9001:2015; CE
Model Number:	WFD-450
Payment & Shipping Terms:
Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Steel Frames
Delivery Time:	90 Days
Payment Terms:	T/T, L/C
Supply Ability:	20 Sets/Month

Contact Now

Detail Information
Machine Model:	WFD-450	Condition:	New
Place Of Origin:	Jiangsu China (Mainland)	Warranty:	2 Years
Bag Type:	Square Bottom, Luxury Carrying Paper Bags	Packaging:	Steel Frames
Certification:	CE,ISO
High Light:	50pcs/min Sheet Fed Paper Bag With Handle Machine , 60pcs/min Sheet Fed Paper Bag With Handle Machine , 80mm high speed paper bag making machine

Product Description

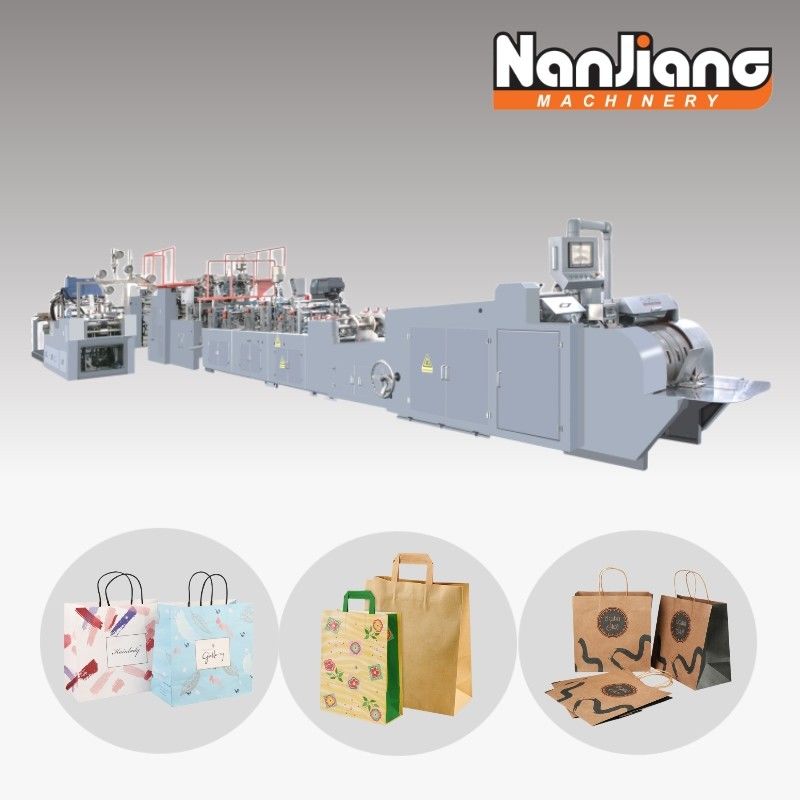

WFD-450 Fully Automatic Sheet Fed Paper Carry Bag With Handle Machine

Properties and uses:

It is fully automatic machine for the production of paper bags with paper twisted rope handle. The material could be Sheet paper or printed sheet paper. Whole machine is controlled by computer central control system with touch screen.

It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from sheet, handle pasting line,top of bag folding, tube forming, bottom forming, bottom glue, bag forming and final bag output,or fold the top and punching holes without handle unit. All steps are completed in-line; this machine is an idea equipment for Twist handle paper carry bags and realize a fully automated line for garment, shoes or all luxury brands packing bag production line which could be directly deliver to customers .

Technical parameter:

Machine Model	WFD-450
Min. Sheet Paper size	625x 330mm(625x 280mm W/O handles)
Max. Sheet Paper size	1225 x 520mm(1025x 600mm W/O handles)
Paper Thickness	100-200gsm/㎡ (210-250gsm/㎡need to die cut)
Paper Bag Width	220-450 mm
Paper Tube Length	240-490 mm
Bag Bottom Width	80-170mm
Bag Top fold Depth	50mm(35)-60 mm
Handle Patch Length	190 mm
Handle Patch Width	40-55 mm
Paper GSM for Handle patch	120-200gsm
Handle patch Roll Diameter	￠1000 mm
Paper Patch Roll Width	80-110 mm
Diameter of Twisted Rope	4-6 mm
Length of Twisted rope	155-175 mm
Speed	50-60 Bags/min.
Total Power	28KW
Machine Weight (L x W x H)	16000 x 4800 x 3000mm
Type of Glue	Cold & Hot melt Glue

Three types of handle bags can be made on this machine.
